In the last three decades, condensed-matter physicists have discovered a wonderland of exotic new phases of matter: emergent, collective states of interacting particles that are nothing like the solids, liquids, and gases of common experience.
The phases, some realized in the lab and others identified as theoretical possibilities, arise when matter is chilled almost to absolute-zero temperature, hundreds of degrees below the point at which water freezes into ice. In these frigid conditions, particles can interact in ways that cause them to shed all traces of their original identities. Experiments in the 1980s revealed that in some situations electrons split en masse into fractions of particles that make braidable trails through space-time; in other cases, they collectively whip up massless versions of themselves. A lattice of spinning atoms becomes a fluid of swirling loops or branching strings; crystals that began as insulators start conducting electricity over their surfaces. One phase that shocked experts when recognized as a mathematical possibility in 2011 features strange, particle-like “fractons” that lock together in fractal patterns.
Now, research groups at Microsoft and elsewhere are racing to encode quantum information in the braids and loops of some of these phases for the purpose of developing a quantum computer. Meanwhile, condensed-matter theorists have recently made major strides in understanding the pattern behind the different collective behaviors that can arise, with the goal of enumerating and classifying all possible phases of matter. If a complete classification is achieved, it would not only account for all phases seen in nature so far, but also potentially point the way toward new materials and technologies.
Led by dozens of top theorists, with input from mathematicians, researchers have already classified a huge swath of phases that can arise in one or two spatial dimensions by relating them to topology: the math that describes invariant properties of shapes like the sphere and the torus. They’ve also begun to explore the wilderness of phases that can arise near absolute zero in 3-D matter.
“It’s not a particular law of physics” that these scientists seek, says Michael Zaletel, a condensed-matter theorist at Princeton University. “It’s the space of all possibilities, which is a more beautiful or deeper idea in some ways.” Perhaps surprisingly, Zaletel says, the space of all consistent phases is itself a mathematical object that “has this incredibly rich structure that we think ends up, in 1-D and 2-D, in one-to-one correspondence with these beautiful topological structures.”
In the landscape of phases, there is “an economy of options,” says Ashvin Vishwanath of Harvard University. “It all seems comprehensible”—a stroke of luck that mystifies him. Enumerating phases of matter could have been “like stamp collecting,” Vishwanath says, “each a little different, and with no connection between the different stamps.” Instead, the classification of phases is “more like a periodic table. There are many elements, but they fall into categories and we can understand the categories.”
While classifying emergent particle behaviors might not seem fundamental, some experts, including Xiao-Gang Wen of MIT, say the new rules of emergent phases show how the elementary particles themselves might arise from an underlying network of entangled bits of quantum information, which Wen calls the “qubit ocean.” For example, a phase called a “string-net liquid” that can emerge in a three-dimensional system of qubits has excitations that look like all the known elementary particles. “A real electron and a real photon are maybe just fluctuations of the string-net,” Wen says.
* * *
Before these zero-temperature phases cropped up, physicists thought they had phases all figured out. By the 1950s, they could explain what happens when, for example, water freezes into ice, by describing it as the breaking of a symmetry: Whereas liquid water has rotational symmetry at the atomic scale (it looks the same in every direction), the H2O molecules in ice are locked in crystalline rows and columns.
Things changed in 1982 with the discovery of phases called fractional quantum Hall states in an ultracold, two-dimensional gas of electrons. These strange states of matter feature emergent particles with fractions of an electron’s charge that take fractions of steps in a one-way march around the perimeter of the system. “There was no way to use different symmetry to distinguish those phases,” Wen says.
A new paradigm was needed. In 1989, Wen imagined phases like the fractional quantum Hall states arising not on a plane, but on different topological manifolds—connected spaces such as the surface of a sphere or a torus. Topology concerns global, invariant properties of such spaces that can’t be changed by local deformations. Famously, to a topologist, you can turn a doughnut into a coffee cup by simply deforming its surface, since both surfaces have one hole and are therefore equivalent topologically. You can stretch and squeeze all you like, but even the most malleable doughnut will refuse to become a pretzel.
Wen found that new properties of the zero-temperature phases were revealed in the different topological settings, and he coined the term “topological order” to describe the essence of these phases. Other theorists were also uncovering links to topology. With the discovery of many more exotic phases—so many that researchers say they can barely keep up—it became clear that topology, together with symmetry, offers a good organizing schema.
The topological phases only show up near absolute zero, because only at such low temperatures can systems of particles settle into their lowest-energy quantum “ground state.” In the ground state, the delicate interactions that correlate particles’ identities—effects that are destroyed at higher temperatures—link up particles in global patterns of quantum entanglement. Instead of having individual mathematical descriptions, particles become components of a more complicated function that describes all of them at once, often with entirely new particles emerging as the excitations of the global phase. The long-range entanglement patterns that arise are topological, or impervious to local changes, like the number of holes in a manifold.

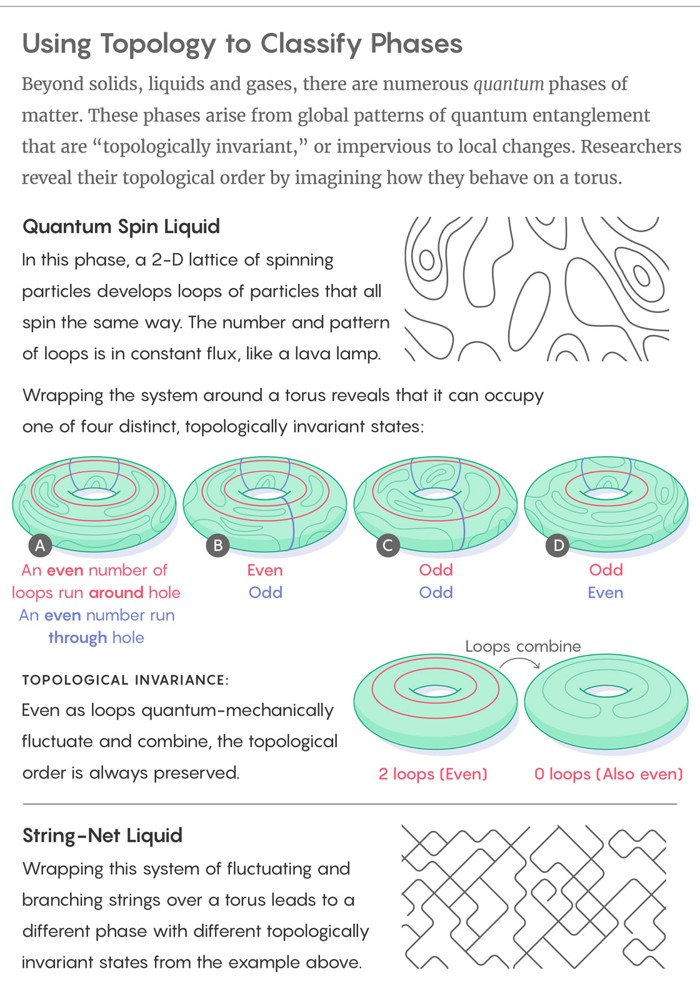

Consider the simplest topological phase in a system—called a “quantum spin liquid”—that consists of a 2-D lattice of “spins,” or particles that can point up, down, or some probability of each simultaneously. At zero temperature, the spin liquid develops strings of spins that all point down, and these strings form closed loops. As the directions of spins fluctuate quantum-mechanically, the pattern of loops throughout the material also fluctuates: Loops of down spins merge into bigger loops and divide into smaller loops. In this quantum-spin-liquid phase, the system’s ground state is the quantum superposition of all possible loop patterns.
To understand this entanglement pattern as a type of topological order, imagine, as Wen did, that the quantum spin liquid is spilling around the surface of a torus, with some loops winding around the torus’s hole. Because of these hole windings, instead of having a single ground state associated with the superposition of all loop patterns, the spin liquid will now exist in one of four distinct ground states, tied to four different superpositions of loop patterns. One state consists of all possible loop patterns with an even number of loops winding around the torus’s hole and an even number winding through the hole. Another state has an even number of loops around the hole and an odd number through the hole; the third and fourth ground states correspond to odd and even, and odd and odd, numbers of hole windings, respectively.
Which of these ground states the system is in stays fixed, even as the loop pattern fluctuates locally. If, for instance, the spin liquid has an even number of loops winding around the torus’s hole, two of these loops might touch and combine, suddenly becoming a loop that doesn’t wrap around the hole at all. Long-way loops decrease by two, but the number remains even. The system’s ground state is a topologically invariant property that withstands local changes.
Future quantum computers could take advantage of this invariant quality. Having four topological ground states that aren’t affected by local deformations or environmental error “gives you a way to store quantum information, because your bit could be what ground state it’s in,” explained Zaletel, who has studied the topological properties of spin liquids and other quantum phases. Systems like spin liquids don’t really need to wrap around a torus to have topologically protected ground states. A favorite playground of researchers is the toric code, a phase theoretically constructed by the condensed-matter theorist Alexei Kitaev of the California Institute of Technology in 1997 and demonstrated in experiments over the past decade. The toric code can live on a plane and still maintain the multiple ground states of a torus. (Loops of spins are essentially able to move off the edge of the system and reenter on the opposite side, allowing them to wind around the system like loops around a torus’s hole.) “We know how to translate between the ground-state properties on a torus and what the behavior of the particles would be,” Zaletel says.
Spin liquids can also enter other phases, in which spins, instead of forming closed loops, sprout branching networks of strings. This is the string-net liquid phase that, according to Wen, “can produce the Standard Model” of particle physics starting from a 3-D qubit ocean.
* * *
Research by several groups in 2009 and 2010 completed the classification of “gapped” phases of matter in one dimension, such as in chains of particles. A gapped phase is one with a ground state: a lowest-energy configuration sufficiently removed or “gapped” from higher-energy states that the system stably settles into it. Only gapped quantum phases have well-defined excitations in the form of particles. Gapless phases are like swirling matter miasmas or quantum soups and remain largely unknown territory in the landscape of phases.
For a 1-D chain of bosons—particles like photons that have integer values of quantum spin, which means they return to their initial quantum states after swapping positions—there is only one gapped topological phase. In this phase, first studied by the Princeton theorist Duncan Haldane, who, along with David Thouless and J. Michael Kosterlitz, won the 2016 Nobel Prize for decades of work on topological phases, the spin chain gives rise to half-spin particles on both ends. Two gapped topological phases exist for chains of fermions—particles like electrons and quarks that have half-integer values of spin, meaning their states become negative when they switch positions. The topological order in all these 1-D chains stems not from long-range quantum entanglement, but from local symmetries acting between neighboring particles. Called “symmetry-protected topological phases,” they correspond to “co-cycles of the cohomology group,” mathematical objects related to invariants like the number of holes in a manifold.
Two-dimensional phases are more plentiful and more interesting. They can have what some experts consider “true” topological order: the kind associated with long-range patterns of quantum entanglement, like the fluctuating loop patterns in a spin liquid. In the last few years, researchers have shown that these entanglement patterns correspond to topological structures called tensor categories, which enumerate the different ways that objects can possibly fuse and braid around one another. “The tensor categories give you a way [to describe] particles that fuse and braid in a consistent way,” says David Pérez García of Complutense University of Madrid.
Researchers like Pérez García are working to mathematically prove that the known classes of 2-D gapped topological phases are complete. He helped close the 1-D case in 2010, at least under the widely held assumption that these phases are always well approximated by quantum field theories—mathematical descriptions that treat the particles’ environments as smooth. “These tensor categories are conjectured to cover all 2-D phases, but there is no mathematical proof yet,” Pérez García says. “Of course, it would be much more interesting if one can prove that this is not all. Exotic things are always interesting because they have new physics, and they’re maybe useful.”
Gapless quantum phases represent another kingdom of possibilities to explore, but these impenetrable fogs of matter resist most theoretical methods. “The language of particles is not useful, and there are supreme challenges that we are starting to confront,” says Senthil Todadri, a condensed-matter theorist at MIT. Gapless phases present the main barrier in the quest to understand high-temperature superconductivity, for instance. And they hinder quantum-gravity researchers in the “it from qubit” movement, who believe that not only elementary particles, but also space-time and gravity, arise from patterns of entanglement in some kind of underlying qubit ocean. “In it from qubit, we spend much of our time on gapless states because this is where one gets gravity, at least in our current understanding,” says Brian Swingle, a theoretical physicist at the University of Maryland. Some researchers try to use mathematical dualities to convert the quantum-soup picture into an equivalent particle description in one higher dimension. “It should be viewed in the spirit of exploring,” Todadri says.
Even more enthusiastic exploration is happening in 3-D. What’s already clear is that, when spins and other particles spill from their chains and flatlands and fill the full three spatial dimensions of reality, unimaginably strange patterns of quantum entanglement can emerge. “In 3-D, there are things that escape, so far, this tensor-category picture,” says Pérez García. “The excitations are very wild.”
* * *
The very wildest of the 3-D phases appeared seven years ago. A talented Caltech graduate student named Jeongwan Haah discovered the phase in a computer search while looking for what’s known as the “dream code”: a quantum ground state so robust that it can be used to securely store quantum memory, even at room temperature.
For this, Haah had to turn to 3-D matter. In 2-D topological phases like the toric code, a significant source of error is “stringlike operators”: perturbations to the system that cause new strings of spins to accidentally form. These strings will sometimes wind new loops around the torus’s hole, bumping the number of windings from even to odd or vice versa and converting the toric code to one of its three other quantum ground states. Because strings grow uncontrollably and wrap around things, experts say there cannot be good quantum memories in 2-D.
Haah wrote an algorithm to search for 3-D phases that avoid the usual kinds of stringlike operators. The computer coughed up 17 exact solutions that he then studied by hand. Four of the phases were confirmed to be free of stringlike operators; the one with the highest symmetry was what’s now known as the Haah code.
As well as being potentially useful for storing quantum memory, the Haah code was also profoundly weird. Xie Chen, a condensed-matter theorist at Caltech, recalled hearing the news as a graduate student in 2011, within a month or two of Haah’s disorienting discovery. “Everyone was totally shocked,” she says. “We didn’t know anything we could do about it. And now, that’s been the situation for many years.”
The Haah code is relatively simple on paper: It’s the solution of a two-term energy formula, describing spins that interact with their eight nearest neighbors in a cubic lattice. But the resulting phase “strains our imaginations,” Todadri says.
The code features particle-like entities called fractons that, unlike the loopy patterns in, say, a quantum spin liquid, are nonliquid and locked in place; the fractons can only hop between positions in the lattice if those positions are operated upon in a fractal pattern. That is, you have to inject energy into the system at each corner of, say, a tetrahedron connecting four fractons in order to make them switch positions, but when you zoom in, you see that what you treated as a point-like corner was actually the four corners of a smaller tetrahedron, and you have to inject energy into the corners of that one as well. At a finer scale, you see an even smaller tetrahedron, and so on, all the way down to the finest scale of the lattice. This fractal behavior means that the Haah code never forgets the underlying lattice it comes from, and it can never be approximated by a smoothed-out description of the lattice, as in a quantum field theory. What’s more, the number of ground states in the Haah code grows with the size of the underlying lattice—a decidedly non-topological property. (Stretch a torus, and it’s still a torus.)
The quantum state of the Haah code is extraordinarily secure, since a “fractal operator” that perfectly hits all the marks is unlikely to come along at random. Experts say a realizable version of the code would be of great technological interest.
Haah’s phase has also generated a surge of theoretical speculation. Haah helped matters along in 2015 when he and two collaborators at MIT discovered many examples of a class of phases now known as “fracton models” that are simpler cousins of the Haah code. (The first model in this family was introduced by Claudio Chamon of Boston University in 2005.) Chen and others have since been studying the topology of these fracton systems, some of which permit particles to move along lines or sheets within a 3-D volume and might aid conceptual understanding or be easier to realize experimentally. “It’s opening the door to many more exotic things,” Chen says of the Haah code. “It’s an indication about how little we know about 3-D and higher dimensions. And because we don’t yet have a systematic picture of what is going on, there might be a lot of things lying out there waiting to be explored.”
No one knows yet where the Haah code and its cousins belong in the landscape of possible phases, or how much bigger this space of possibilities might be. According to Todadri, the community has made progress in classifying the simplest gapped 3-D phases, but more exploration is needed in 3-D before a program of complete classification can begin there. What’s clear, he says, is that “when the classification of gapped phases of matter is taken up in 3-D, it will have to confront these weird possibilities that Haah first discovered.”
Many researchers think new classifying concepts, and even whole new frameworks, might be necessary to capture the Haah code’s fractal nature and reveal the full scope of possibilities for 3-D quantum matter. Wen says, “You need a new type of theory, new thinking.” Perhaps, he says, we need a new picture of nonliquid patterns of long-range entanglement. “We have some vague ideas but don’t have a very systematic mathematics to do them,” he says. “We have some feeling what it looks like. The detailed systematics are still lacking. But that’s exciting.”
This post appears courtesy of Quanta Magazine.
